- Assemble the 18kw enduro e-bike
-

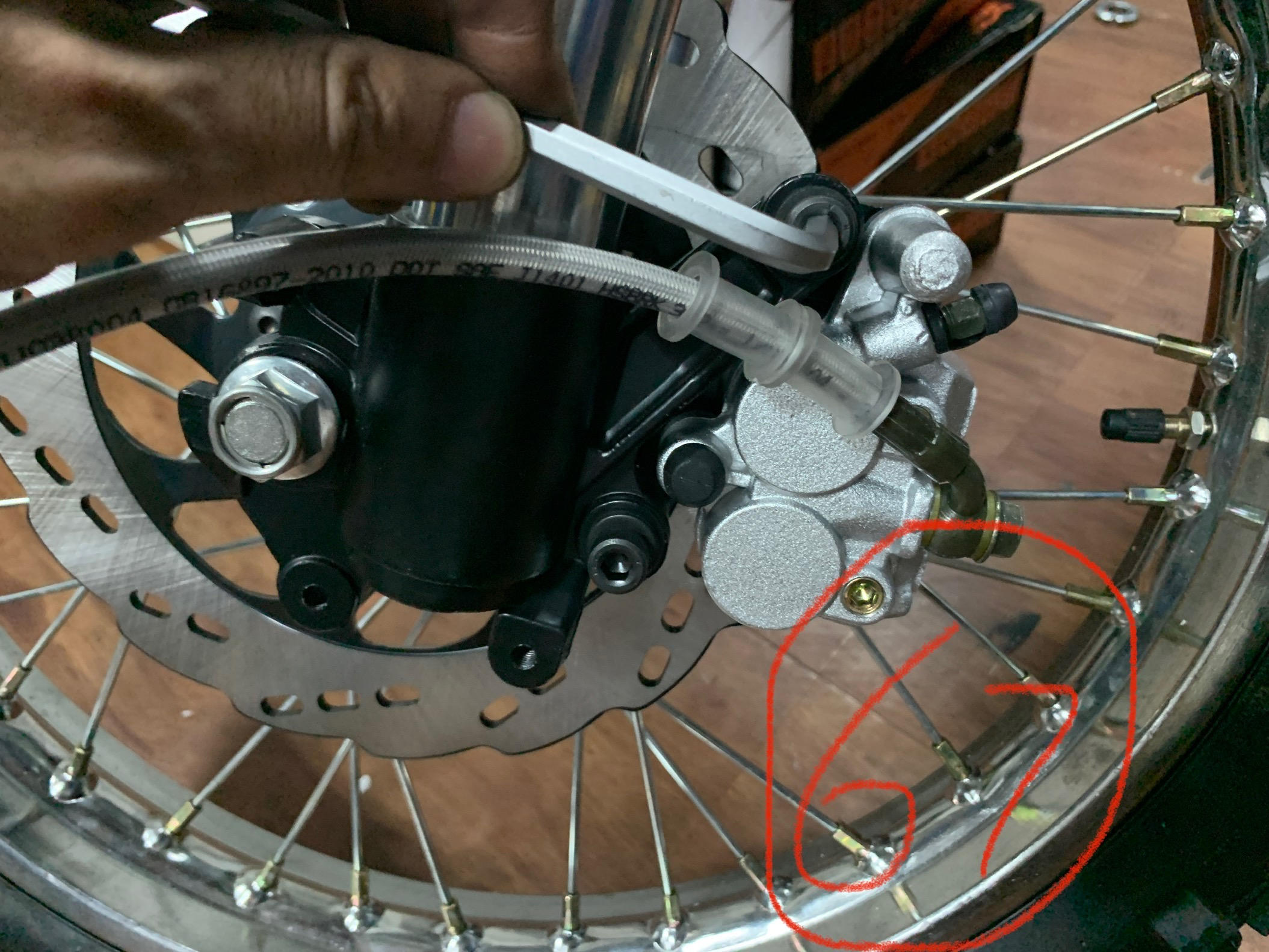

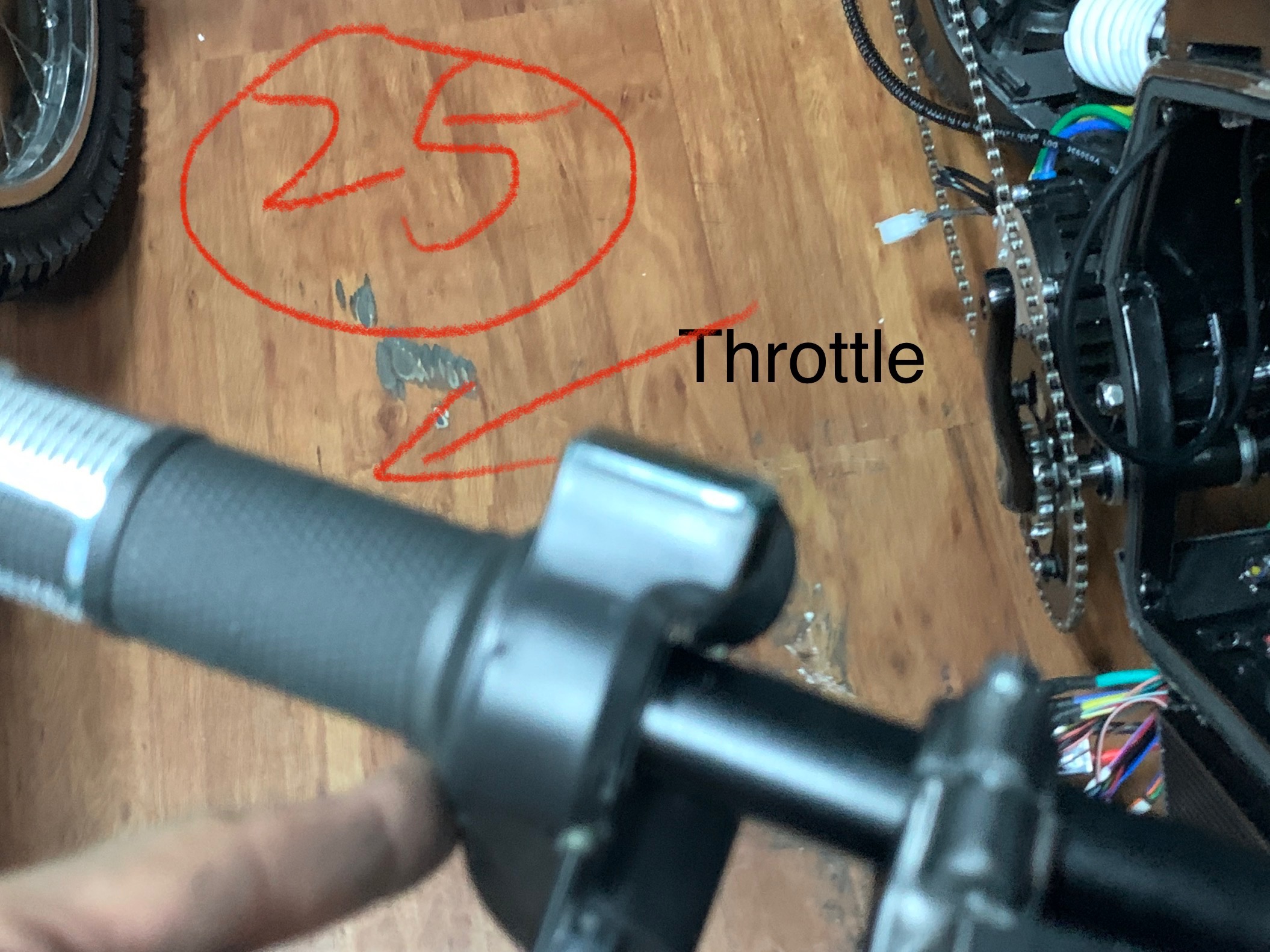

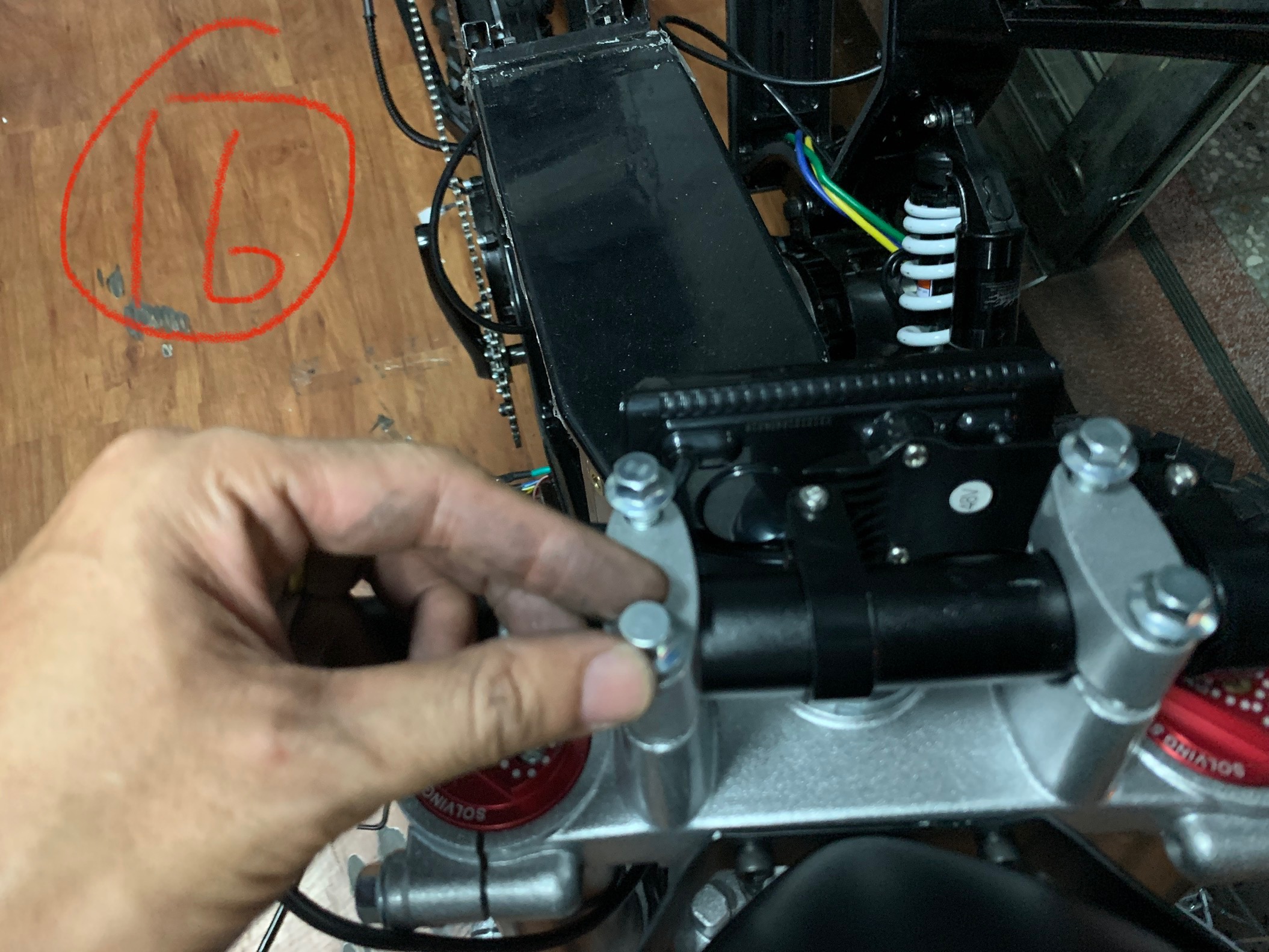

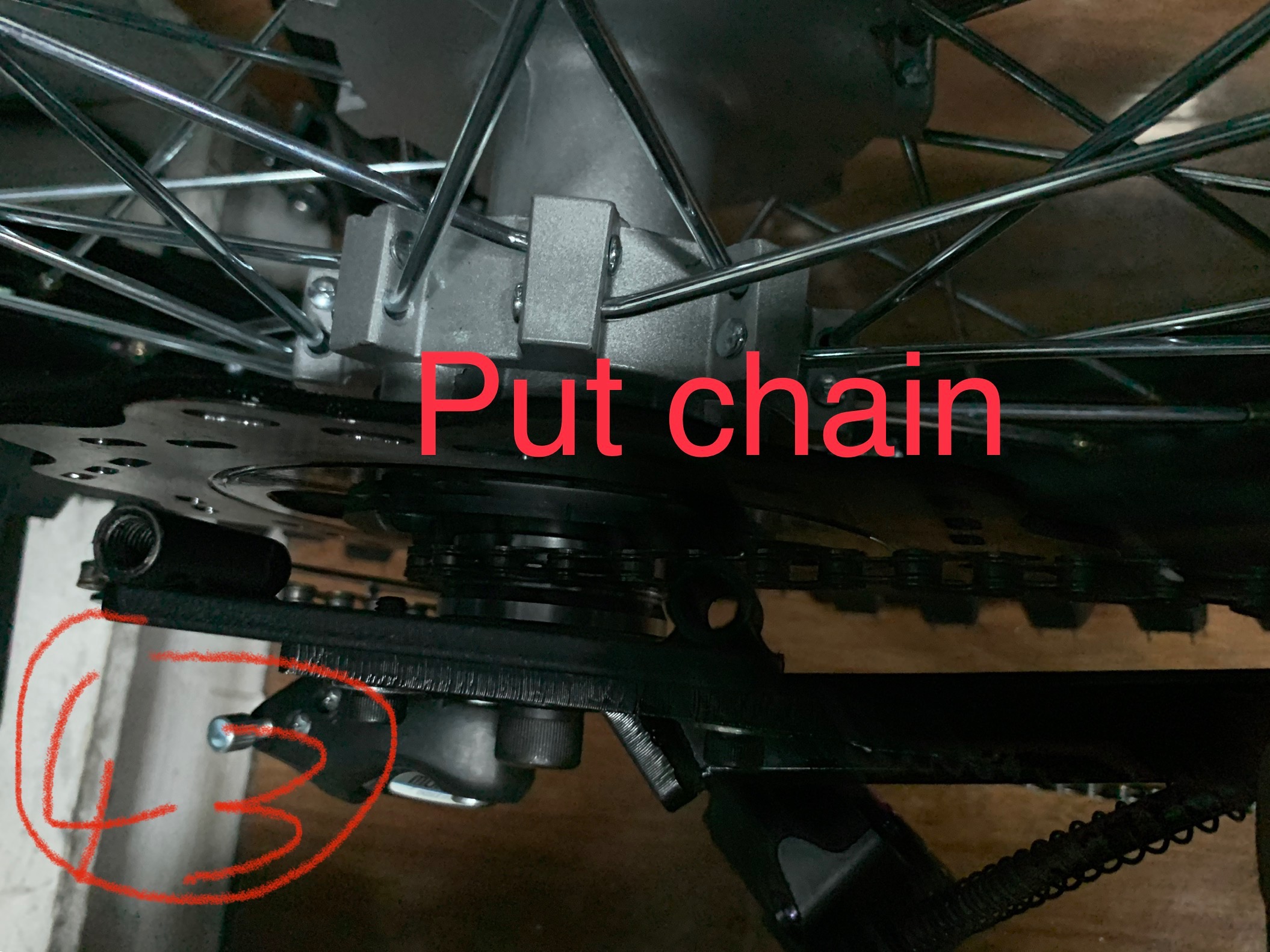

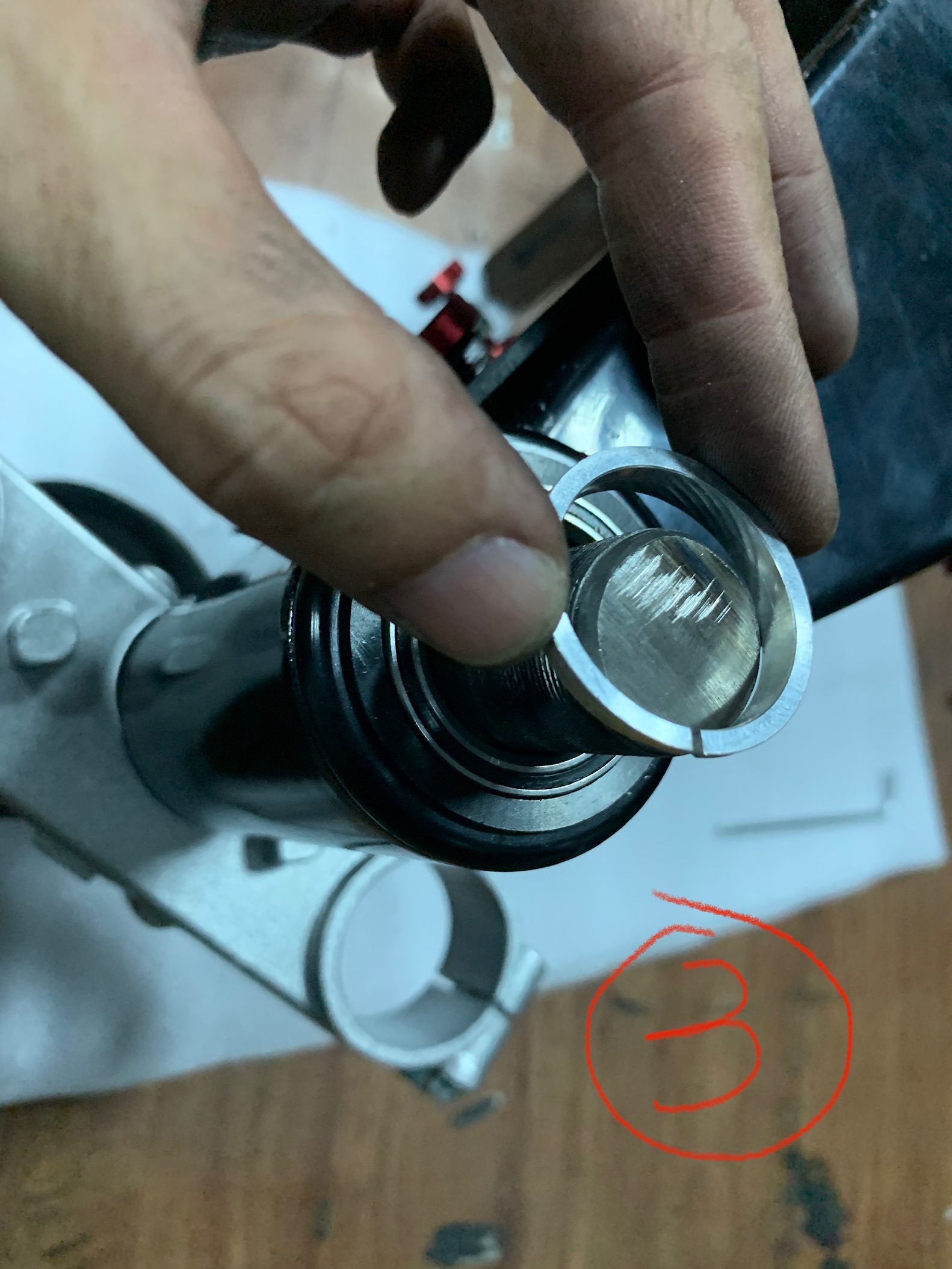

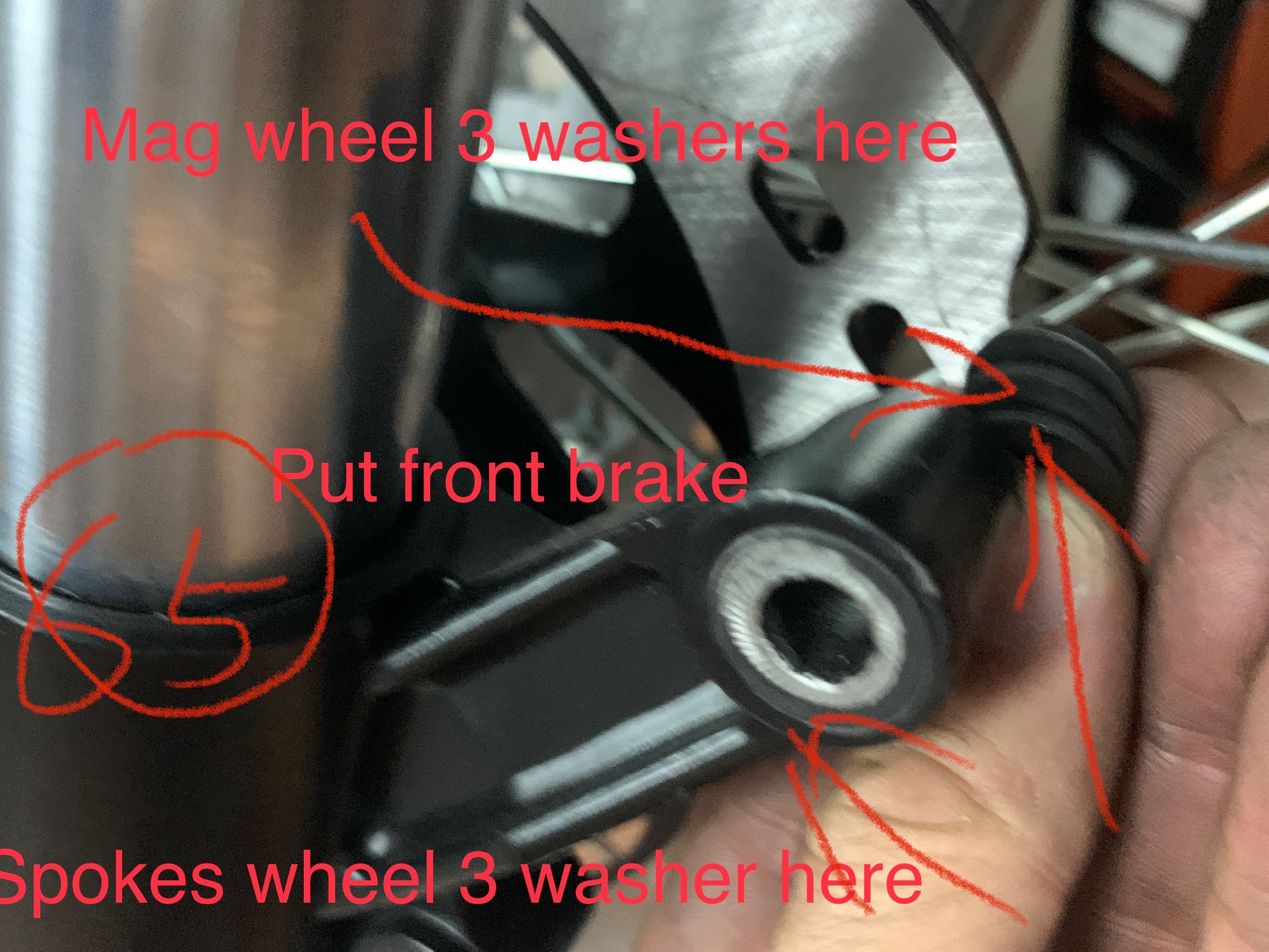

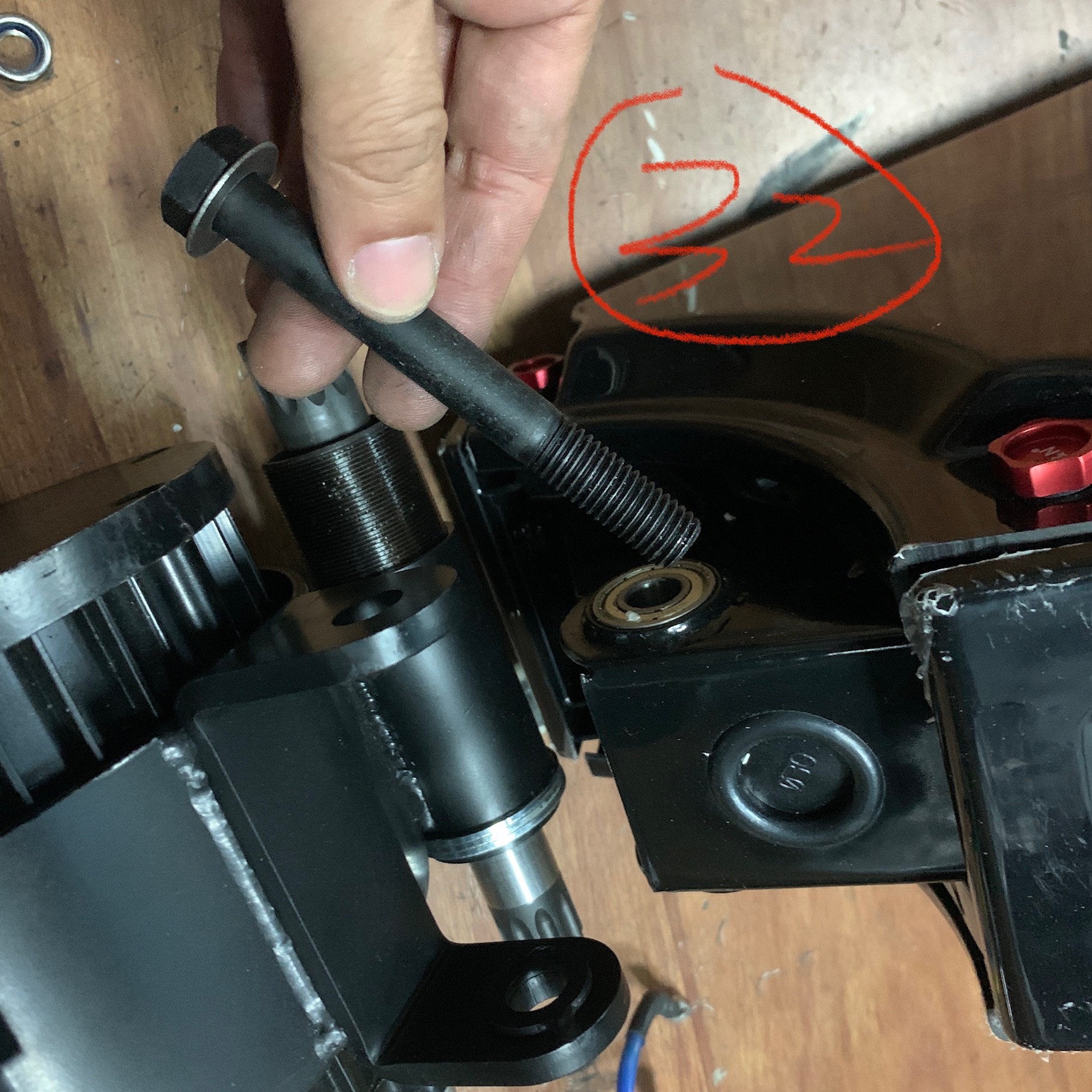

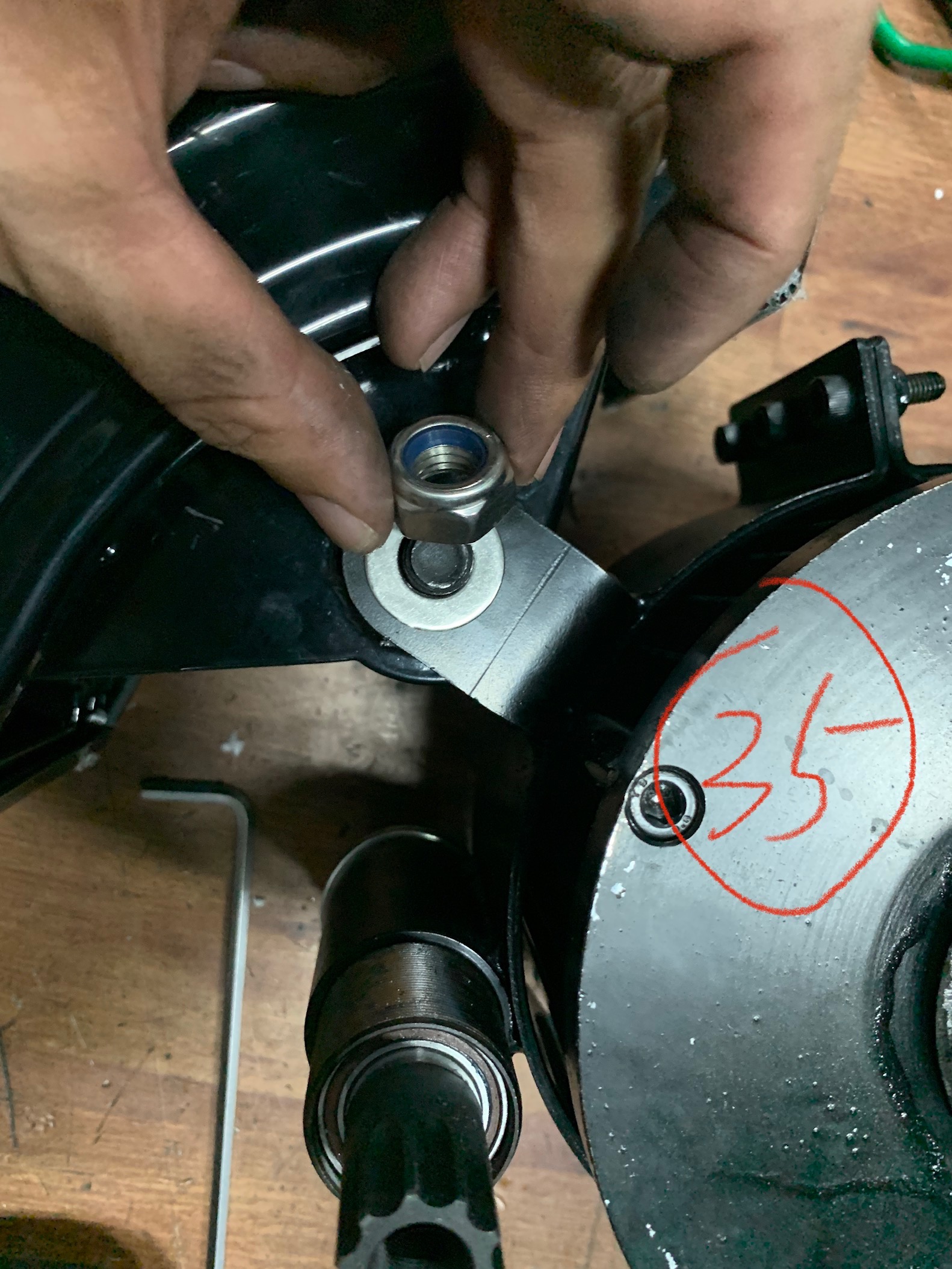

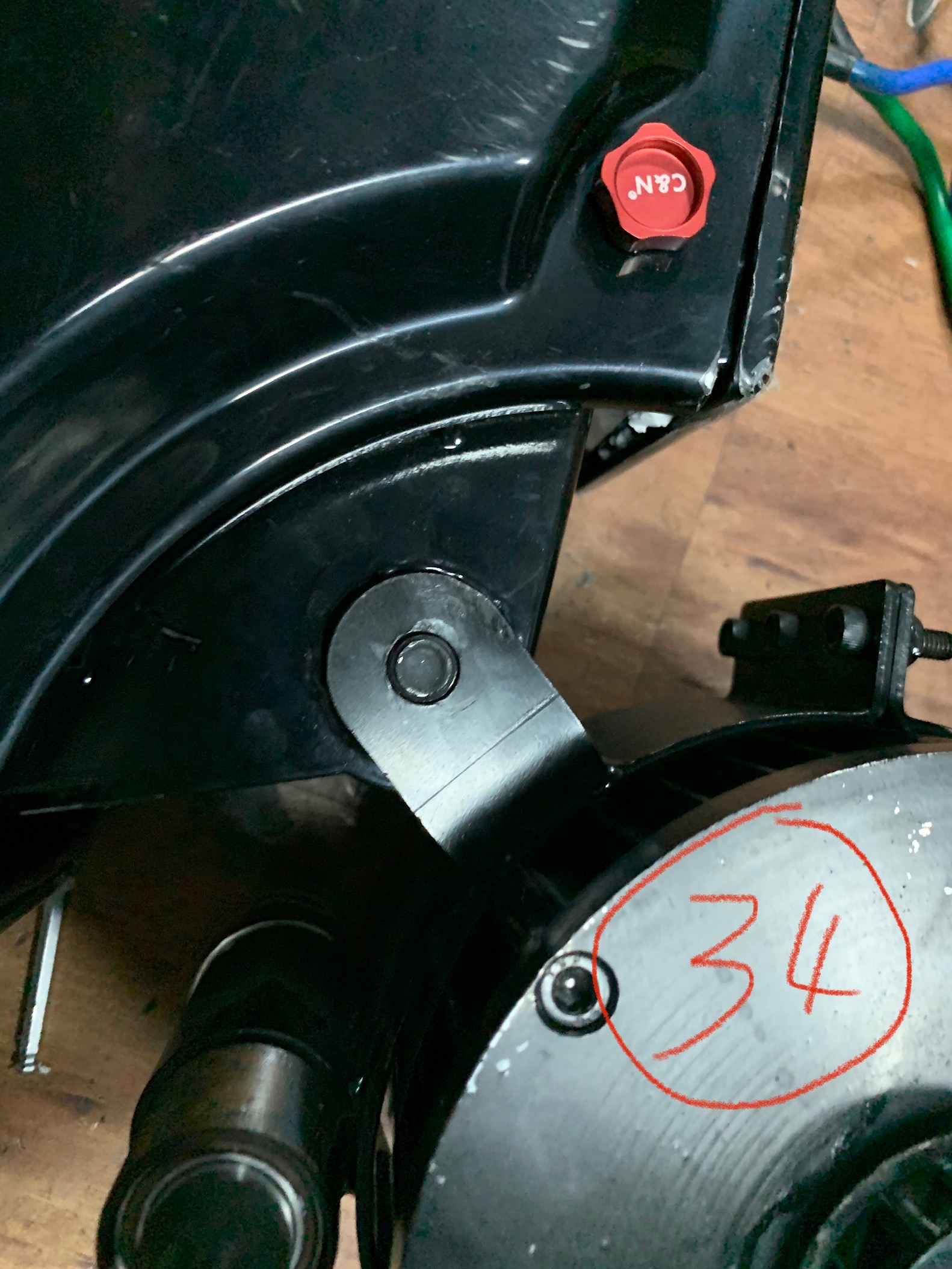

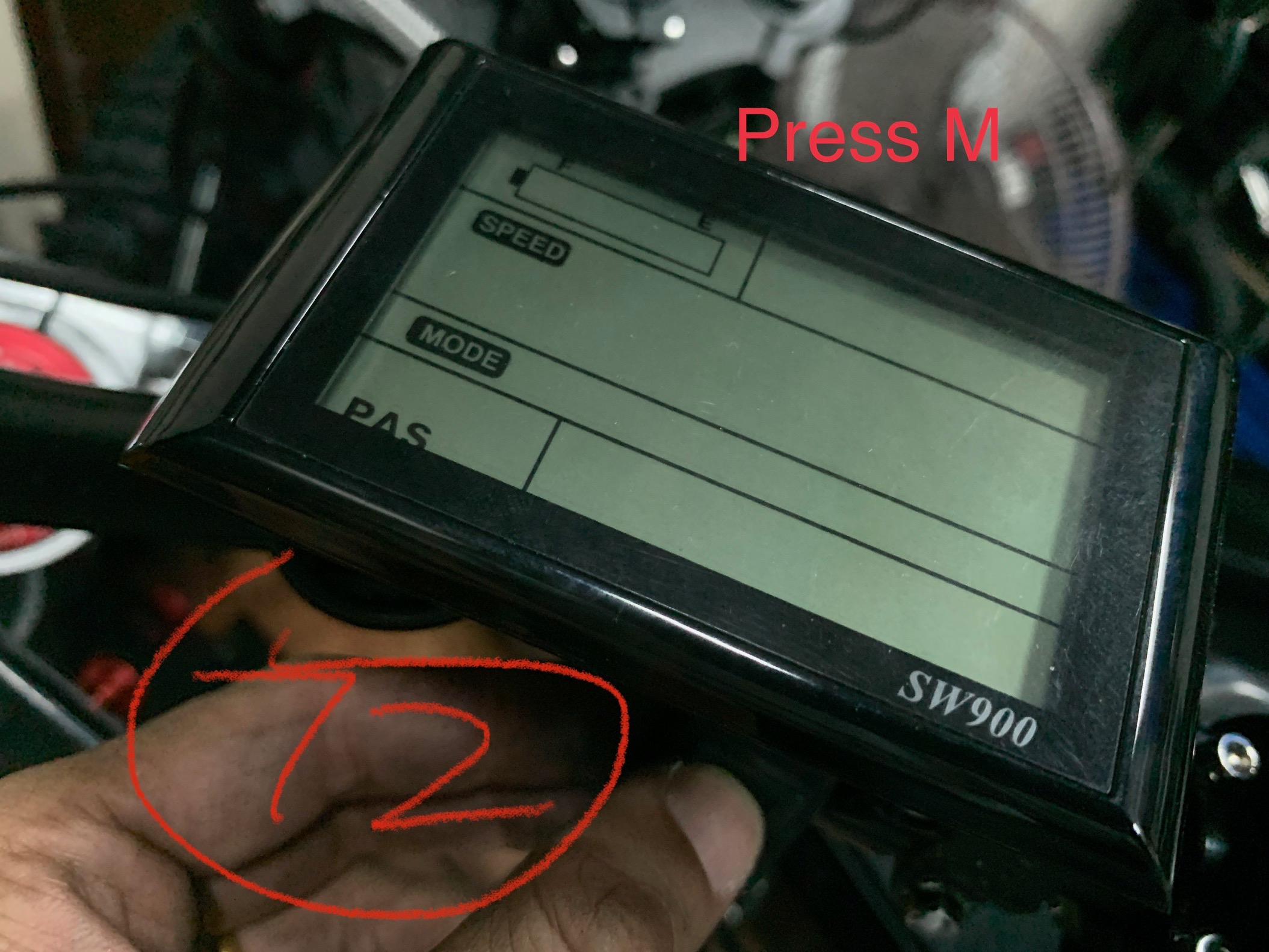

1. remove the battery from the frame ( too heavy , only put it back when all of the parts are all assembled2. Take the fork crown install with the head set with handle bar on the frame.3. put left fork and right fork4. put M12 Bolt on wheel screw in to left fork,5. fix the M12 bolt right side to the right side fork6. put the front disc brake, the thin wire from the break lever need to plug in to controller brake switch plug7. put throttle on handle bar connect to controller , there are 3+2 pins , 2pins plug connect to the one next to LCD plug.8. put LCD on handle bar plug to controller only need to use the big plug9. connect the rear swingarm and 12T gear on the right side for chain to fit10. put rear derailleur and chain on11. put 9 speed shifter on and connect the wire to rear derailleur12. put rear shock on,13. put Kickstand , the bike can put up14. put rear brake on, but need to loosen the belt before you do that, put seat on15. put back battery and connect to controller16. tighten all the bolts and nuts on the bike and switch the key on, press M button for 5 second to turn on the power17. ready to go
- How to set Bluetooth programable controller
-
App https://www.cyclone-tw.com/upload-files/app/cyclone0122.apk download
App https://www.cyclone-tw.com/upload-files/app/vehicle.apk download

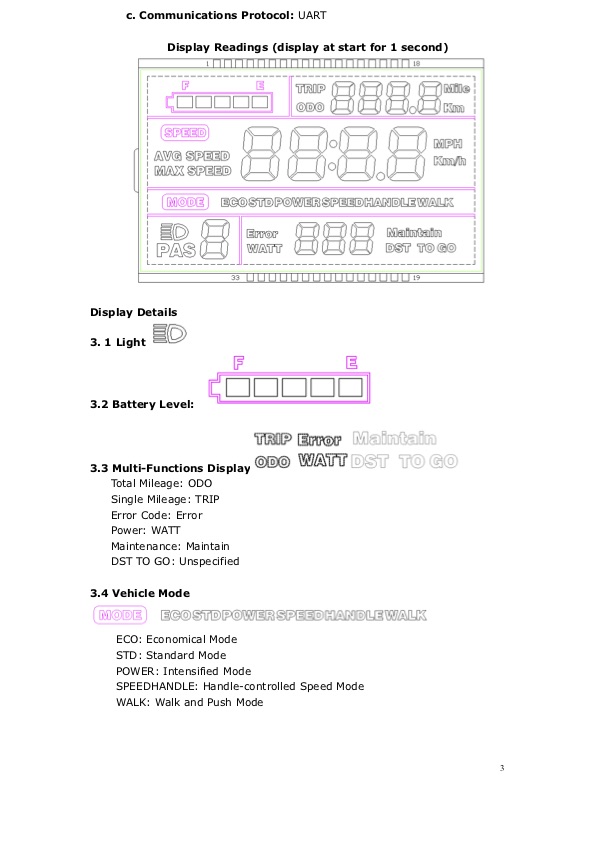

- How to set the LCD
-
P17: Set the controller Phase current, when the number bigger motor speed up quicker<
- If I have question that is not in FAQ page how do I find the answer?
-
you can e-mail us at [email protected] we will reply you within 48 hours, usually is 8 hours reaction time.
